buckling test lab report

Procedure 1 The deformation measurement device was arranged in a horizontal position. Different support reactions buckling load can be calculated using Eulers Equation and tested experimentaly in a laboratory strut test.

Sample Note On Buckling Report Notes

Buckling test engt110.

. Comments on the effect of length end conditions material and 2 nd moment of area on the buckling loads were then made. Locate the test fixture to be used to connect the beams to the Instron Load. Perform individual tests with each specimen for the following three conditions.

Appendices 9 2 fAbstract. The column was placed on the bottom and higher bar. Stability PP P Pallowable D d i l h i Displaced position Depends on materials strength properties Compressive members.

The Eulers buckling load is a critical load. 10 rows I 005 01312 416 10 -6 m4. The lateral deflection of the column will be measured with a LVDT but the extensometer will.

Theoretical buckling load was then calculated for each length and then plotted on the graph. This report deals with a series of experiments on struts of different lengths but the same cross-sectional area. Page 1 of 8 BUCKLING TEST ENGT110 Group 1.

Apply load and gradually by increase the compressive force until an obvious deformation occur. AE 3610 Column Buckling Measurements 5 EI h hM bend 2 2 e - k -. Buckling tests simulating the load imposed on the support post have been conducted to obtain the empirical data for assessing the buckling limit of the support post because the buckling behavior of the support post is generally difficult to predict only analytical approach.

Column buckling occurs once the critical load is reached. The Euler equation is given by. AME 21241 Mechanics of Solids Laboratory Spring 2016.

Buckling Test Procedure Mechanics of Materials Lab CIVL 3325 November 17 2011 Strength vs. The curve of length against average experimental buckling load was plotted for steel struts 1 6. Calculate the projected critical load for the pin-supported columns to be tested for 10 12 15 18 and 20.

1 L 2 against buckling load figure 3 will be linear and shows that longer columns have lower buckling loads it also shows the sensitivity of the buckling load to length i. INVESTIGATION OF BUCKLING IN STRUTS 1 P a g e Investigation of Buckling in Struts 1 Objectives The main aim for carrying out this experimental test is to investigate the buckling phenomenon and to establish the relationship between buckling load and the slenderness ratio of struts. Before the lab students should compute the theoretical failure loads for each specimen using Eulers equation for column.

Buckling is a failure mode which occurs in long slender structural members before a plastic deformation such as yielding or crushing can happen. The buckling load can also be calculated using Euler equation where it can be seen that the buckling. Buckling happens when segment tends to deviate sideways out of the line of activity of the load.

Columnsstruts PPInitial position P Pcritical Depends on members geometrical properties. How to check slump test. Eulers equation is given as below.

Up to 24 cash back Buckling is a disproportionate increase in displacement from a small increase in load. Buckling is one of the major causes of failures particularly in slender columns. In the actual experiment the species in most cases are not ideal and have.

Minor objectives of the experiment include the following. Buckling test lab report pdf. It will show that the Euler Buckling load is affected by the slenderness ratio radius of gyration second moment of.

1 minute Strut test is used to determine the Eulers buckling load of the strut. Preparation for the lab. Start the experiment with the 225mm specimen first.

24 the critical slenderness ratio lcrit at which buckling occurs can be calculated. S16_Lab4_bucklingdocx 1 Last Revision. The test results give the formula of critical compressive stress σ crit 24 which is the.

Struts are long slender columns that fail by buckling some time before the yield stress in compression is reached. The equation shows that the buckling load is inversely proportional to the column length a plot of. The objective of this laboratory is to introduce students to the buckling test and to evaluate the ﬀ that specimen length has on the failure load.

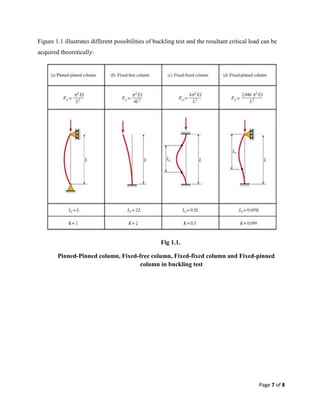

Column buckling test lab report. 14 Preliminary The following items must be turned in at the start of your lab session. Both ends fixed one end fixed with one pinned and both ends pinned.

All columns are rectangular shape of 075 x 0075 3. The purpose is to compare the performances of three specimens of columns of same materialcross-section but different lengths under simple support and clamped support. However this relationship is not entirely linear.

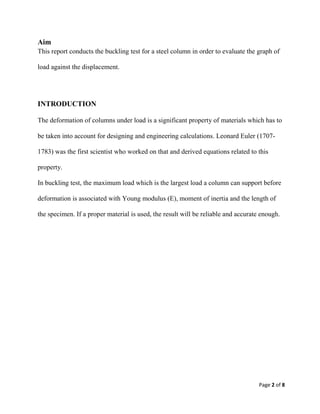

Page 2 of 8 Aim This report conducts the buckling test for a steel column in order to evaluate the graph of load against the displacement. Load only depends on the cross sectional area material properties such as Youngs modulus E and the way both ends are fixed. Mode is called buckling and it is an example of an elastic instability.

Understand buckling of struts. Create and prepare a data sheet for the laboratory indicating the following information on the table. As the process of buckling starts the variability can result in catastrophe of the segment since the unusual force goes about as a minute bringing about more huge stresses and bending.

2 To ensure that the load to the strut did not exceed the buckling load the theoretical buckling load for the particular pinned strut was calculated with conditions accounted for. A choice of the loads to be used for each test ie for Steps 3 4 6 and 7 in the Procedure. The load was applied to the column by turning the loading mechanism.

3 The support with grooves on it were than place into the slot and. Buckling is caused by the failure in compression due to the material strength and stiffness properties. The experimental set-up is very similar to that used in the tension test exercise.

Doubling the length will quarter the buckling load. INTRODUCTION The deformation of columns under load is a significant property of materials which has to be taken into account for. The specimen then had its length measured.

E c For constructive steel St37 with sp 192 Nmm the lcrit 104Above lcrit buckling according to. This report assesses the relationships between theoretical and experimental analyses of buckling loads for columns with variable lengths under different boundary conditions. The distributed load in terms of the applied load and column properties can be seen in Equations 1 and 2 below.
